A Easy Buttons

This appendix explains how to enter functions, relations, values, and symbols with GrafEq’s easy buttons. For explanation of specific functions and relations, refer to the Appendix B, Functions and Relations.

Functions, relations, and operations have to be entered in certain formats; they also take varying number of arguments. GrafEq provides the easy buttons as well as the following features to offer support during relation entry:

  • Most entries are mathematically intuitive,
  • The active constraint field being edited provides hints at the bottom of the field prompting for the next step of action.
  • The correctness of any entry can be observed in
    • the relation visual format,
    • the relation tree structure, and
    • the relation graph.


A.1 Algebra Easy Buttons

The Algebra easy buttons provides help for entering algebraic functions. The two control buttons on the top row offer options for algebraic power functions, or inverse algebraic power functions. Figure A.1 shows the algebraic easy buttons:

Algebra Easy Buttons - Power Functions Algebra Easy Buttons - Inverse Power Functions
Power Functions Inverse Power Functions

Figure A.1: Algebra Easy Buttons


The entities x and y within the easy buttons represent expressions that should be entered after the button-click; and the entity a represents arguments that should be entered prior to the button-click. Each button is explained as follows:

  • To enter a2, and a3 functions, enter an argument first; then click the button;

  • To enter 10x, and ex functions, click the button first; then enter the power expression (represented by x). For example, to enter “e33.54”,
    1. click the ex button;
    2. enter the power expression (represented by x), which is “33.54” in this example.

    Hint:Parentheses would be necessary for power expressions such as x/y, or 2xy, but not if the power is a single simple term. Experiment with GrafEq to see the differences when these power expressions are entered with, and without parentheses.

  • To enter ax functions, enter the argument first; then click the button; then enter the power term (represented by x).
    For example, to enter “x2+y3=52xy”,
    1. enter “x”;
    2. click the a2 button;
    3. enter “+y”;
    4. click the a3 button;
    5. enter “=5”;
    6. click the ax button; and
    7. enter the expression “(2xy)”.

    Hint:The same parenthesis rules apply to ax, 10x, and ex, which means that parentheses are necessary for power expressions such as x/y, or 2xy, but not for single simple terms. Experiment!

  • To enter square-root, log, and ln functions, click the button first; then enter an argument, which can be a single simple term or an expression enclosed in appropriate parenthesis.

  • To enter cube-root functions, click the button first; then enter the argument and finish with a closing parenthesis.

  • To enter xth-rooty functions, click the button first; then enter the root index expression (represented by x) follow by a comma; then enter an argument expression (represented by y); and finally finish with a closing parenthesis.
    For example, to enter “5th root of 2x+y”,
    1. click the xth-rooty button;
    2. enter the root index expression represented by x, which is “5” in this example,
    3. follow by a comma;
    4. enter the argument expression represented by y, which is “2x+y” in this example,
    5. finish with a closing parenthesis.

  • To enter logxy functions, click the button first; then enter an expression for the log base (represented by x); followed by the argument expression (represented by y).
    For example, to enter “log2x”,
    1. click the logxy button;
    2. enter the logarithm base represented by x, which is “2” in this example;
    3. enter the argument represented by y, which is “x” in this example.

    Hint:Parentheses are not required if the base and the argument are single simple terms or fractions of single simple terms, such as x, y, x/y, 2, 3, or 2/3. Parentheses are necessary for expressions such as x+y, 2xy, or for two consecutive numeric terms that would otherwise be treated as one number. Try it out!!

Hint:In general, exiting exponent, radical, or logarithmic base is by entering an operation of lower precedence; or if the constraint specification is already complete, by pressing return, or pressing the tab key to enter the next constraint field. More information about precedence is available in Appendix B, Functions and Relations.


A.2 Arithmetic Easy Buttons

The Arithmetic easy buttons, as seen in figure A.2, provides help for entering arithmetic operators.

Arithmetic Easy Buttons
Figure A.2: Arithmetic Easy Buttons

To enter or insert an arithmetic operator, just click its button.
*, -, and / are all used in between two arguments (infix binary); +, -, ± can be used either in between two arguments, or in front of one argument (prefix unary). Each argument can be a single term or an expression enclosed in appropriate parentheses).


A.3 Basic Easy Buttons

The Basic easy buttons, as seen in figure A.3, include six basic mathematical operations and symbols which are frequently used.

Basic Easy Buttons
Figure A.3: Basic Easy Buttons
Basic easy buttons are also provided in the respective easy button groups to which they logically belong. Explanation of how to enter relevant relations with the buttons are presented again as follows:
  • To enter ax functions, enter the argument first; then click the button; then enter the power term (represented by x).
    For example, to enter “52xy”,
    1. enter “5”;
    2. click the ax button; and
    3. enter the expression “(2xy)”.

    Hint:Parentheses are necessary for power expressions such as x/y, or 2xy, but not for single simple terms. When in doubt, parenthesis can always be used.

  • To enter square-root functions, click the button first; then enter an argument, which can be a single simple term or an expression enclosed in appropriate parenthesis.

  • To enter xth-rooty functions, click the button first; then enter the root index expression (represented by x) follow by a comma; then enter an argument expression (represented by y); and finally finish with a closing parenthesis.
    For example, to enter “5th root of 2x+y”,
    1. click the xth-rooty button;
    2. enter the root index expression represented by x, which is “5” in this example,
    3. follow by a comma;
    4. enter the argument expression represented by y, which is “2x+y” in this example,
    5. finish with a closing parenthesis.

  • To enter logxy functions, click the button first; then enter an expression for the log base (represented by x); followed by the argument expression (represented by y).
    For example, to enter “log2x”,
    1. click the logxy button;
    2. enter the logarithm base represented by x, which is “2” in this example;
    3. enter the argument represented by y, which is “x” in this example.

    Hint:Parentheses are not required if the base and the argument are single simple terms or fractions of single simple terms, such as x, y, x/y, 2, 3, or 2/3. Parentheses are necessary for expressions such as x+y, 2xy, or for two consecutive numeric terms that would otherwise be treated as one number. Again, when in doubt, parenthesis can always be used.

  • To enter or insert π and θ, click the its button.


A.4 Factoring Easy Buttons

The Factoring easy buttons, as seen in figure A.4, provides help for entering factoring functions and operators.

Factoring Easy Buttons
Figure A.4: Factoring Easy Buttons


  • To enter mod, lcm, gcd, and gamma functions, click the button, then enter arguments.
    gamma takes one argument, which can be a single term or an expression enclosed in appropriate parentheses. mod takes two arguments while lcm and gcd takes two or more, each separated by a comma, and the last one followed by a closing parenthesis.
  • To enter ! functions, enter an argument first, then click the button. The single argument can be a single term or an expression enclosed in appropriate parentheses.

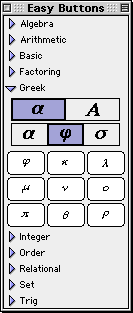

A.5 Greek Easy Buttons

The Greek easy buttons provides help for entering Greek characters. The two control buttons on the top row offer options for upper or lower case Greek characters. The three control buttons on the second row offer options for characters groups denoted by the leading characters, namely:
set Α(from Α to Ι), set ϑ(from ϑ to Ρ), or, set Σ(from Σ to Ζ); and set α(from α to ι), set ϕ(from ϕ to ρ), or, set σ(from σ to ζ).
To enter or insert a greek character, just click its button. Figure A.5 shows the Greek easy buttons:

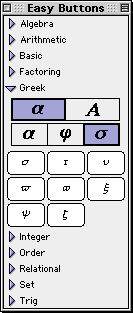

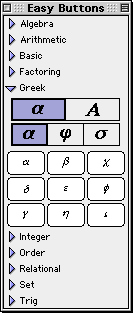

Greek Easy Buttons - Lowercase Characters Set alpha Greek Easy Buttons - Lowercase Characters Set varphi Greek Easy Buttons - Lowercase Characters Set sigma
Set α Set ϕ Set σ

Greek Easy Buttons - Uppercase Characters Set Alpha Greek Easy Buttons - Uppercase Characters Set vartheta Greek Easy Buttons - Uppercase Characters Set Sigma
Set Α Set ϑ Set Σ

Figure A.5: Greek Easy Buttons - Lower and Uppercase Characters


A.6 Integer Easy Buttons

The integer easy buttons, as seen in figure A.6, provides help for entering integer functions and operators.

Integer Easy Buttons
Figure A.6: Integer Easy Buttons


  • To enter floor and ceiling functions, click the opening button, then enter the argument, then click the closing button. The single argument can be a single term or an expression enclosed in appropriate parentheses.
  • To enter round, and trunc functions, click the button first, then enter an arguments.
    The single argument can be a single term or an expression enclosed in appropriate parentheses.


A.7 Measure Easy Buttons

The Measure easy buttons, as seen in figure A.7, provides help for entering magnitude operators.

Measure Easy Buttons
Figure A.7: Measure Easy Buttons


  • To enter |x| functions, click the button first, then enter an argument, which can be a single term or an expression enclosed in appropriate parentheses, then close by clicking the button again.
  • To enter signum, and angle functions, click the button first, then enter an argument, which can be a single term or an expression enclosed in appropriate parentheses.


A.8 Numbers Easy Buttons

The Numbers easy buttons, as seen in figure A.8, provides help for entering numeric digits, the decimal point, and the negative sign.

Numbers Easy Buttons
Figure A.8: Numbers Easy Buttons

To enter or insert a number digit, just click on its button.
Numbers can be conveniently entered via the computer keyboard; this easy button set is provided for completeness, and is turned off in preferences settings by factory default.


A.9 Order Easy Buttons

The Order easy buttons, as seen in figure A.9, provides help for entering maximum and minimum ordering functions:

Order Easy Buttons
Figure A.9: Order Easy Buttons

  • Click the ordering buttons first, then enter arguments.
  • Min and max return the minimum and maximum respectively, of specified arguments; minx and maxx return the xth smallest and the xth largest respectively, of specified arguments.
  • To enter min and max functions, click the button first, then enter two or more arguments, separating any two by a comma, and finish with a closing parenthesis after the last argument.
  • To enter minx and maxx functions,
    1. click the button first,
    2. enter a positive integer for the base x,
    3. start the argument list with an opening parenthesis,
    4. enter an appropriate number of arguments, separating any two by a comma,
    5. and finish with a closing parenthesis after the last argument.

    Hint:The number of argument should be equal to or larger than the value of x.


A.10 Relational Easy Buttons

The Relational easy buttons provides help for entering relational symbols. The two control buttons on the top row offer options for simple relational symbols, or negated relational symbols. Figure A.10 shows the relation easy buttons:

Relational Easy Buttons - Direct Relations Relational Easy Buttons - Negated Relations
Direct Relations Negated Relations

Figure A.10: Relational Easy Buttons


To enter or insert a relational symbol, just click its button.
All relational symbols are used between two arguments (infix binary).


A.11 Roman Easy Buttons

The Roman easy buttons provides help for entering Roman characters. The two control buttons on the top row offer options for upper or lower case Roman characters. The three control buttons on the second row offer options for characters groups denoted by the leading characters, namely, set A(from A to I), set J(from J to R), or, set S(from S to Z), and set a(from a to i), set j(from j to r), or, set s(from s to z). Figure A.11 shows the Roman easy buttons:

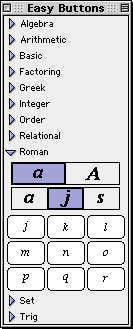

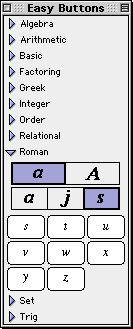

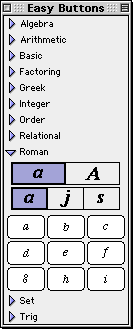

Roman Easy Buttons - Lowercase Characters Set a Roman Easy Buttons - Lowercase Characters Set j Roman Easy Buttons - Lowercase Characters Set s
Set a Set j Set s

Roman Easy Buttons - Uppercase Characters Set A Roman Easy Buttons - Uppercase Characters Set J Roman Easy Buttons - Uppercase Characters Set S
Set A Set J Set S

Figure A.11: Roman Easy Buttons - Lower and Uppercase Characters

To enter or insert a Roman character, just click its button.
Roman characters can be conveniently entered via the computer keyboard; this easy button set is provided for completeness, and is turned off in preferences settings by factory default.


A.12 Set (and conditional definition) Easy Buttons

These easy buttons, as seen in figure A.12, provides help for entering set symbols and conditional definitions.

Set Easy Buttons
Figure A.12: Set Easy Buttons


  • To define a set by listing its elements:
    1. click the open brace button (or enter the open brace from the keyboard),
    2. enter a set element;
      if it is not the last element,
      • click the comma button (or enter a comma from the keyboard),
      • and enter the next element,
      • and repeat the two above steps until the last element is entered.
    3. finish by clicking the close brace button (or enter the close brace from the keyboard).
  • To enter set membership definitions, enter an argument first, click the “is member” or “is not member” button, then enter the set definition.
  • To enter conditional definitions,
    1. click the open brace button (or enter the open brace from the keyboard),
    2. enter terms and conditions as follows:
      1. enter a term,
      2. enter a space, then click the if button, then enter a space again,
      3. enter a condition term,
      4. and repeat the three steps above until all terms and conditions are entered.
    3. finish by clicking the close brace button (or enter the close brace from the keyboard).
    An example conditional definition is y={x if x>0, 0 if x=0, -x if x<0}
  • Pairs of braces, brackets, and parentheses, can all be used to control precedence. Just click pairs of opening and closing buttons accordingly to insert them.

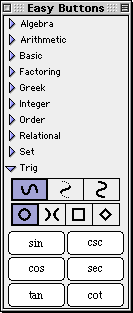

A.13 Trig Easy Buttons

The Trig easy buttons provides help for entering various trig functions and relations. The three control buttons on the top row offer options for simple trig functions, inverse trig functions, or inverse trig relations. The four control buttons on the second row offer options for operations groups based on four different conics, namely, circle set, hyperbola set, square set, or diamond sets. Figure A.13 shows the trig easy buttons:

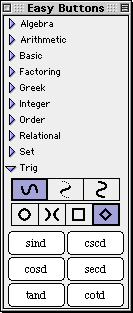

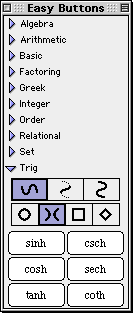

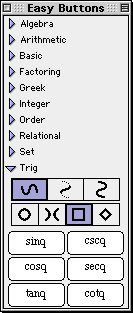

Trig Easy Buttons - Circle Functions Trig Easy Buttons - Hyperbola Functions Trig Easy Buttons - Square Functions Trig Easy Buttons - Diamond Functions
Circle Functions Hyperbola Functions Square Functions Diamond Functions

Trig Easy Buttons - Inverse Circle Functions Trig Easy Buttons - Inverse Hyperbola Functions Trig Easy Buttons - Inverse Square Functions Trig Easy Buttons - Inverse Diamond Functions
Inverse Inverse Inverse Inverse
Circle Functions Hyperbola Functions Square Functions Diamond Functions

Trig Easy Buttons - Inverse Circle Relations Trig Easy Buttons - Inverse Hyperbola Relations Trig Easy Buttons - Inverse Square Relations Trig Easy Buttons - Inverse Diamond Relations
Inverse Inverse Inverse Inverse
Circle Relations Hyperbola Relations Square Relations Diamond Relations

Figure A.13: Trig Easy Buttons

Each trig operation is used in front of one argument as each is a prefix unary operation. To use one, click on the desired button first and then an the argument. The argument can be a single simple term or an expression enclosed in parentheses.


Here are some additional hints and tips about the easy button floating window:

  • All functions, operations and symbols may also be entered via the keyboard. The key-combinations for special characters and operators are listed in Appendix E, Keyboard Shortcuts.
  • Easy buttons are provided in an easy button floating window. The display of each group of easy buttons in the floating window can be toggled on or off by clicking the triangular arrow adjacent to the corresponding set name.
  • Easy button groups altogether with the respective headings can be hidden from the easy button floating window, across sessions, by unselecting the respective “Available” checkboxes from the File Preferences window - Algebraic Window - Easy Buttons - Access menu. By factory default, all but Measure, Numbers, and Roman buttons are selected, but a smaller selection may be appropriate for a beginners’ class or a special lesson. For details of the floating window, refer to the The Easy Button Floating Window chapter.
  • For details of the easy button floating window, refer to the The Easy Button Floating Window chapter.
